Thông tin chi tiết sản phẩm:
|
| Kiểu: | Kiểu thắt lưng | Hoạt động: | Thay đổi màn hình liên tục |
|---|---|---|---|
| Điện sưởi ấm: | 8,4kw | lọc: | Lưới điều chỉnh |
| Biến động áp suất: | ≤5% | Máy đùn áp dụng: | φ120mm |
| Lợi ích cốt lõi: | Sản xuất liên tục |

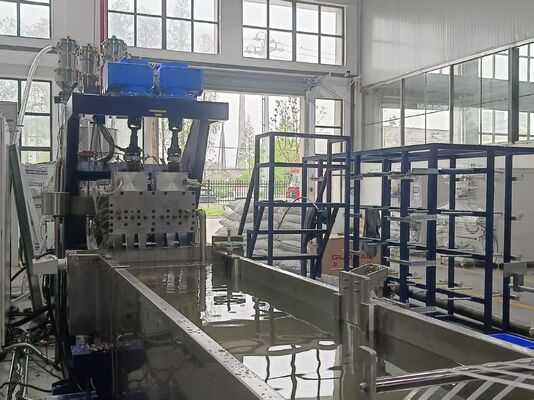

During production, filter screens can become clogged with contaminants, causing pressure to rise. Traditional screen changes require stopping the line, severely impacting efficiency. This production line is equipped with a belt-type screen changer that allows smooth, rapid screen changes without stopping or slowing the extruder.
By moving the filter belt continuously or stepwise, it achieves "screen change while producing," significantly reducing production interruptions and improving Overall Equipment Effectiveness (OEE). It is especially suitable for long-running, large-scale production lines.
| Item | Parameter / Description |
|---|---|
| Screen Changer Type | Belt-type (continuous or stepwise) |
| Operation | Non-stop, no speed reduction |
| Heating Power | 8.4 KW |
| Filtration Accuracy | Depends on mesh size (standard 60-150 mesh) |
| Drive Method | Hydraulic / Electric optional |
| Applicable Extruder | φ120mm single screw |
| Pressure Fluctuation | ≤5% during screen change |
