Thông tin chi tiết sản phẩm:
|
| Dung lượng lưu trữ: | 200 mét | Kích thước: | 3,4×1,1×1,3m |
|---|---|---|---|
| Ổ điện: | 3,8kw | Phương pháp điều khiển: | Liên kết tự động |
| Chiều rộng áp dụng: | 5-19mm | Chức năng: | Bộ đệm thay đổi cuộn |
| Giá trị cốt lõi: | Cuộn dây liên tục không ngừng | ||
| Làm nổi bật: | 200-meter accumulator for PP strapping band,continuous non-stop winding tape storage,linked automatic control strapping production |
||
During automatic winder roll changes, the winding shaft must briefly stop to unload finished rolls and load empty paper cores. Without intervention, continuous tape output during this process would cause accumulation or breakage.

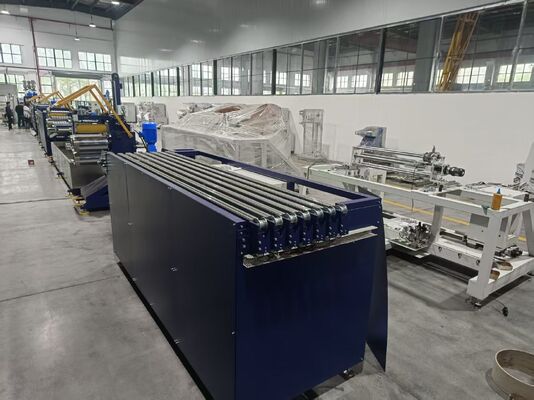

Our production line includes a 200-meter capacity accumulator (tape storage rack) that automatically stores online tape during winder roll changes and releases stored tape once changes are complete. This maintains continuous production without requiring frequent main line start/stop cycles, ensuring high-efficiency operation while providing operators sufficient time for roll changes.
| Item | Parameter |
|---|---|
| Dimensions | L3.4m × W1.1m × H1.3m |
| Storage capacity | 200 meters |
| Drive motor power | 3.8 KW |
| Speed adjustment | Adjustable (matched to line speed) |
| Control linkage | Signal exchange with winder PLC |
| Applicable width | 5 - 19 mm |
At a line speed of 200 m/min, 200 meters of storage supports approximately 1 minute of roll change time. Actual roll change operations (unloading, loading core, restart) by skilled operators typically take about 30 seconds, providing ample margin for efficient operation.
The accumulator features multiple parallel guide rollers and separating combs with independent tape paths. The motor-driven roller speed is adjustable to maintain optimal tension, preventing slack and tangling during operation.
No. The tape remains in a free-hanging or light-contact state within the accumulator, with no additional friction or stretching. The guide rollers feature smooth surfaces that preserve tape quality and prevent surface damage.
